Spinning Silk Nylon Shuttle With Pliers
Spinning Silk Nylon Shuttle With Pliers time:2025-03-04 10:28:51 click:3549 keywords:Nylon shuttle, pliers nylon shuttle, wool nylon shuttle
description:

Our company provides a variety of specifications and models of spinning nipper nylon shuttle (for wool spinning and silk). The core of nylon shuttle is provided with a spring piece to fix the bobbin. Both sides of the core are fixed together by two semicircle nippers, which are used to block the straight neck of the weft bobbin. The tip of the small nipper nylon shuttle with a length of 395mm is relatively sharp. The diameter of the nipper is 25mm, and the effective length of the shuttle chamber is 21.5cm, which is suitable for 205 Mm woolen weft tubes (wood, plastic) are used.

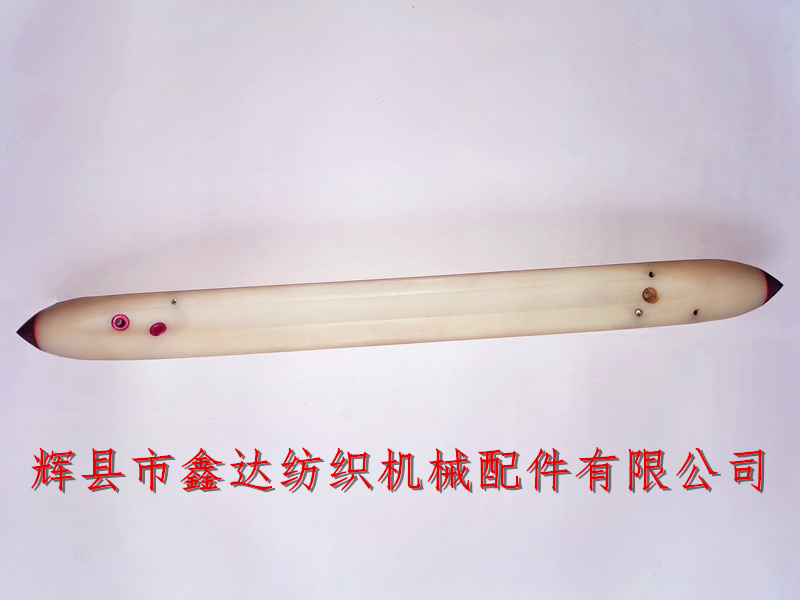

Silk pincers shuttle core accessories

The overall dimension of wool spinning nylon shuttle: 395mm in length * 42mm in bottom width * 32mm in shuttle height, 127mm in core iron rod length and 32mm in inner cavity width of wool spinning nylon shuttle. The three ceramic eye design (two long ceramic eyes and one short ceramic eye) is adopted for the yarn exit position of shuttle tip, which can effectively prevent the occurrence of weft shrinkage. The black reed on the bobbin core is used to tighten the inner hole of the bobbin to prevent the bobbin from rolling in the bobbin cavity and reduce weft break during the process of shuttle feeding.

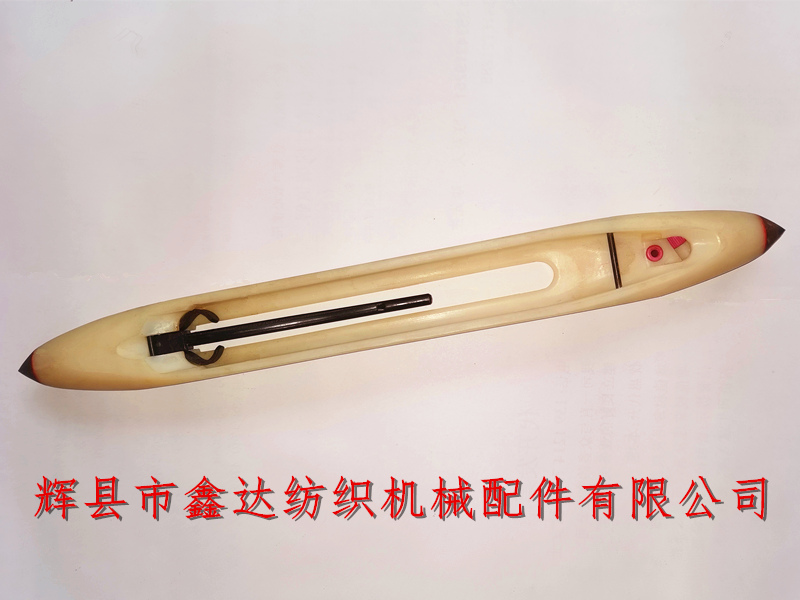

Textile equipment nylon shuttle with small pliers

Compared with the silk loom, the half plier nylon shuttle used in the wool textile machine is generally longer, and its shape is slender compared with the shuttle body. The shuttle tip is a small head, which is convenient to reduce the resistance in flight. The operation and use are simple, and the projectile force is reduced. The root diameter of the shuttle core is 6.6mm, and there is no chuck on the shuttle core.

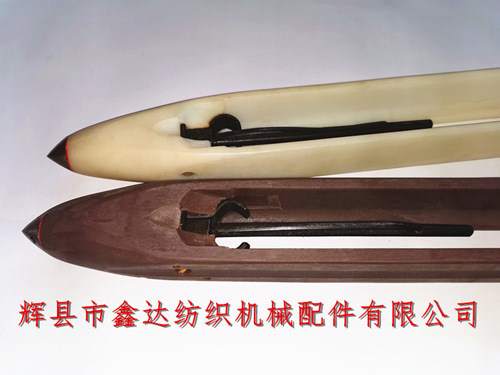

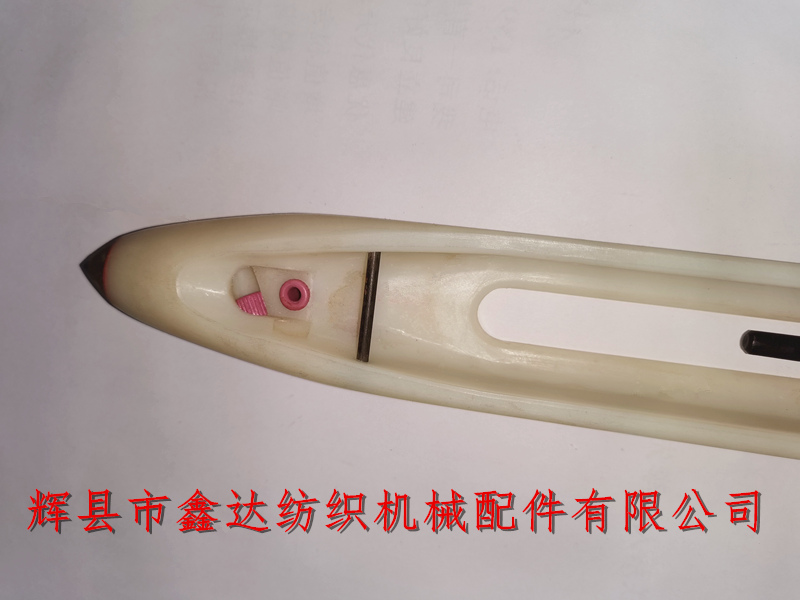

Textile accessories_ Three ceramic eyes accessories of small Harbin pliers

Top view of nylon shuttle of wool spinning pliers, as shown above, the black steel pin is installed from one side of shuttle weft slot for yarn blocking and guiding, and the shuttle body is made of PA66 injection molding, not pouring type.

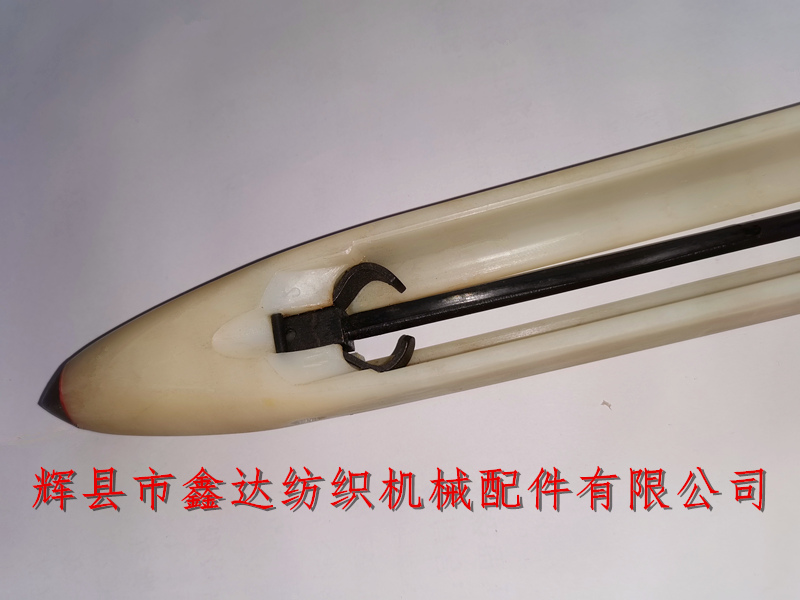

Nylon shuttle of wool spinning pincers

Xinda Textile equipment includes all kinds of nylon shuttles for weaving machines (half plier shuttles, collet shuttles, slant shuttles, cotton shuttles, glass fiber shuttles), with an order quantity of 1000 and a delivery time of 30-50 days. If you want to buy nylon shuttle, pliers nylon shuttle, wool nylon shuttle, please contact our company for details!
