Xinda textile fittings provide various textile grain nail Wood Fittings 5100-13A (1515), T00-5 (1511),Fixed wooden bar fittings with textile nails, dobby loom grain nail wood mainly through the arrangement and combination of iron grain nails on the bars, to achieve the change of Dobby weaving process. 32 holes of Dobby grain nail wood fittings, length 20.5 cm, 21 cm, 23.5 cm, textile grain nail wood combination 5100-13A is made of T56 pin ring, T57 joint ring and 5115 grain. The nail bars are made of wood.

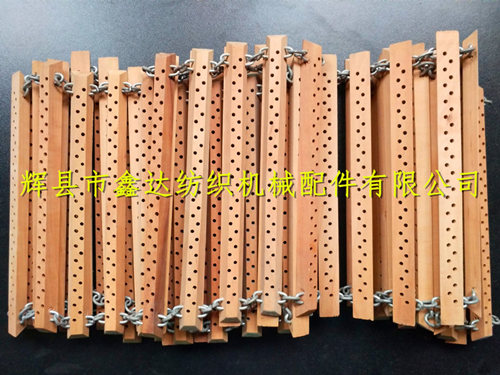

Thirty-two-hole nailed wood with 20 joints of connecting ring and pin ring/hanging. The figure above is 1515 type nailed wood.

Loom grain nail wood storage pictures, each package 50 hang / 60 hang (according to the length of grain nail, packaging is also different).

1511 textile grain nailing equipment, length 20.5 cm, trapezoidal grain nailing, grain nailing wear length less than 0.8 mm, T55B should not be lower than the surface of the drum T35, allowable limit + 0.8 mm ~ + 1.5 mm, strip width limit is - 1 mm (check with standard grain board).
