L33_ 29 teeth weft density wheel is a kind of changing gear of loom.L33_ 29 Tooth Power Loom Change Gear,It is used to weave 30 pieces of cloth with weft density per inch. The outer diameter of gear is 55mm, the thickness is 22mm, and the inner hole is standard size of 18.5mm. The changing gear of textile machine from 19 teeth to 58 teeth is the common specification for weaving white grey cloth. Some customers of manufacturers will choose 29 teeth weft density gear with English No.55 reed when weaving 8029 white cloth, and reduce the number of reed Warp density, increase weft density (weft is relatively cheap).

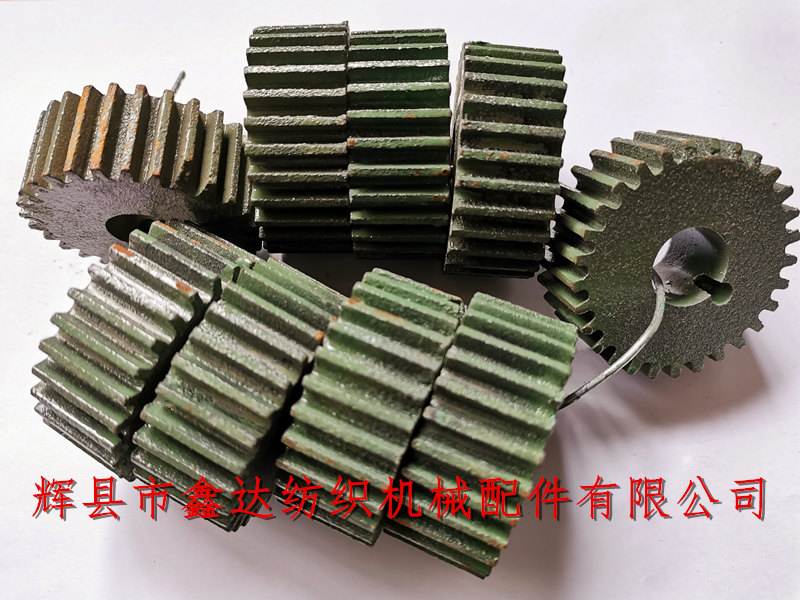

The weft density wheel used by the electric loom is generally processed by casting teeth. After the sand is turned out, the teeth are relatively rough and the tolerance and fit are poor. The above figure shows milling teeth.Weft density wheel,change gear,loom gear,L33_ 29 Tooth Loom Change Gear.

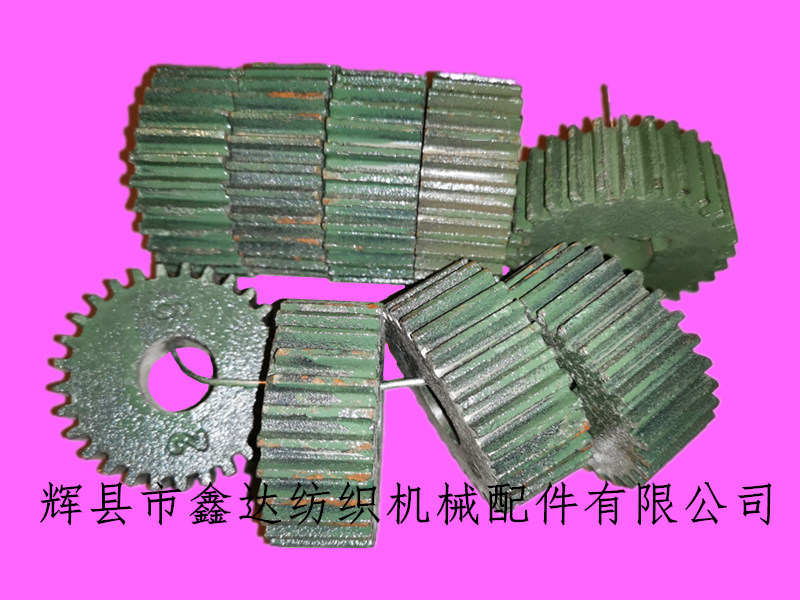

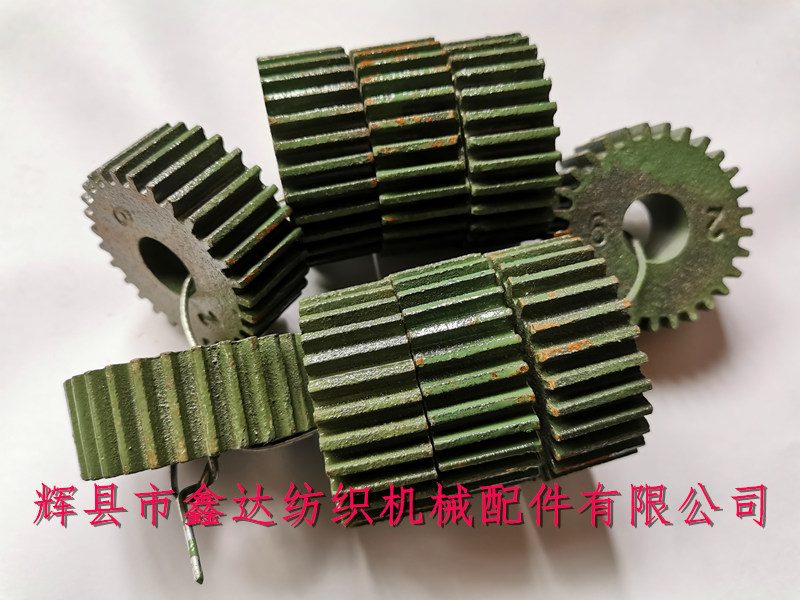

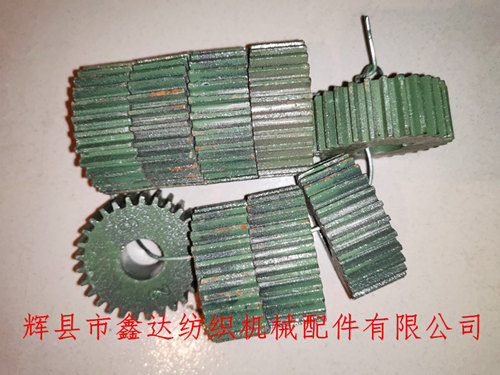

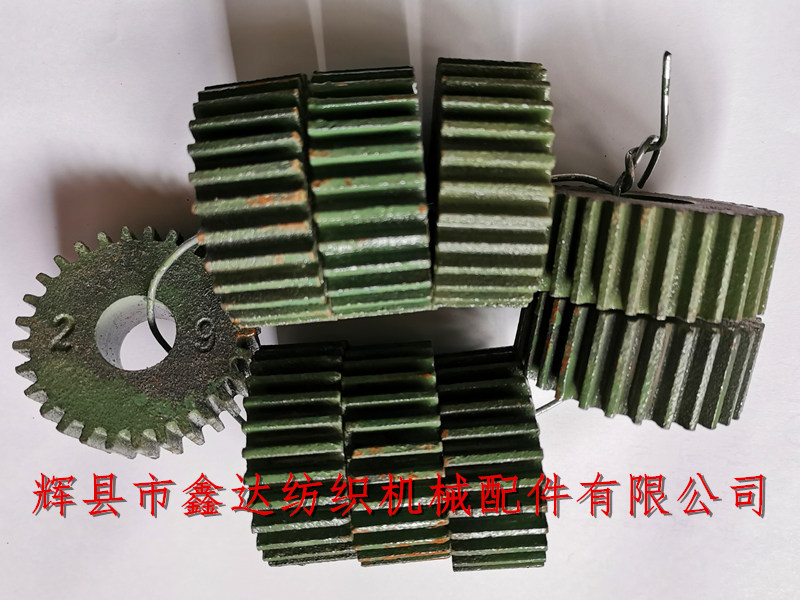

The gears are connected in series with iron wire, 20 in each string, and the number of teeth is marked on two sides. On the loom, two weft density gears are connected and rotated. 37 teeth are driving wheels, which are used to control weft density in combination with tooth transformation of other gears.

L33_ The single weight of 29 teeth weft density wheel is about 0.27kg, modulus = gear outer diameter ÷ (number of teeth + 2), and the diametral pitch modulus of gear can be calculated according to this formula.

Weft density wheel is fixed on L00-4 cored pinion and L00-6 change gear core. Each loom uses 2. We are looking for weft density wheel manufacturers. We need to change gear manufacturing, and we can contact our company for detailed consultation on gear sanding of loom.
